ABOUT US
Some materials provide coverage.
TENSILE® withstands.
TENSILE® withstands.
TENSILE® is a technical system of knife-coated PVC fabrics, engineered to perform where conditions are most demanding: abrasive environments, continuous loads, and severe weather exposure.
Knife-coating technology ensures structural adhesion between the PVC and the base fabric that conventional processes cannot achieve — longer service life, greater stability, and a lower failure rate in the field.
Extra-wide rolls mean fewer seams, lower risk, and better results in fabrication.
TENSILE®, FLEXIBLE ENGINEERING.
Products
Knife-coating technology ensures structural adhesion between the PVC and the base fabric that conventional processes cannot achieve:
longer service life, greater stability, and a lower failure rate in the field.
TECHNICAL SPECIFICATIONS
TEXTILE BASE
CONSTRUCTION
COATING
THICKNESS:
WEIGHT / M²:
TENSILE STRENGTH: MD/CD
TEAR STRENGTH: MD/CD
ADHESION
FLAME RETARDANT:
TEMPERATURE RANGE:
UV RESISTANCE:
1100 DTEX
RASCHEL FABRIC 7X7
PVC
500 MICRONES
610 GR +/- 3%
2600-2500 N/5CM DIM 53354
380-300 DIM 53363
110 N/5CM DIM 53357
OPTIONAL
-35º / 70 º
3 YEARS
COLORS
TECHNICAL SPECIFICATIONS
TEXTILE BASE
CONSTRUCTION
COATING
THICKNESS:
WEIGHT / M²:
TENSILE STRENGTH: MD/CD
TEAR STRENGTH: MD/CD
ADHESION
FLAME RETARDANT:
TEMPERATURE RANGE:
UV RESISTANCE:
1100 DTEX
RASCHEL FABRIC 7X7
PVC
550 MICRONES
650 GR +/- 3%
2800-2400 N/5CM DIM 53354
500-320 DIM 53363
120 N/5CM DIM 53357
YES
-35º / 70 º
3 YEARS
COLORS
TECHNICAL SPECIFICATIONS
TEXTILE BASE
CONSTRUCTION
COATING
THICKNESS:
WEIGHT / M²:
TENSILE STRENGTH: MD/CD
TEAR STRENGTH: MD/CD
ADHESION
FLAME RETARDANT:
TEMPERATURE RANGE:
UV RESISTANCE:
1100 DTEX
RASCHEL FABRIC 12X12
PVC
800 MICRONES
900 GR +/- 3%
4200-4000 N/5CM DIM 53354
750-550 DIM 53363
120 N/5CM DIM 53357
YES
-40º / 70 º
5 YEARS
COLORS
Applications
TRANSPORTATION
AGRICULTURE & INDUSTRY
MARINE

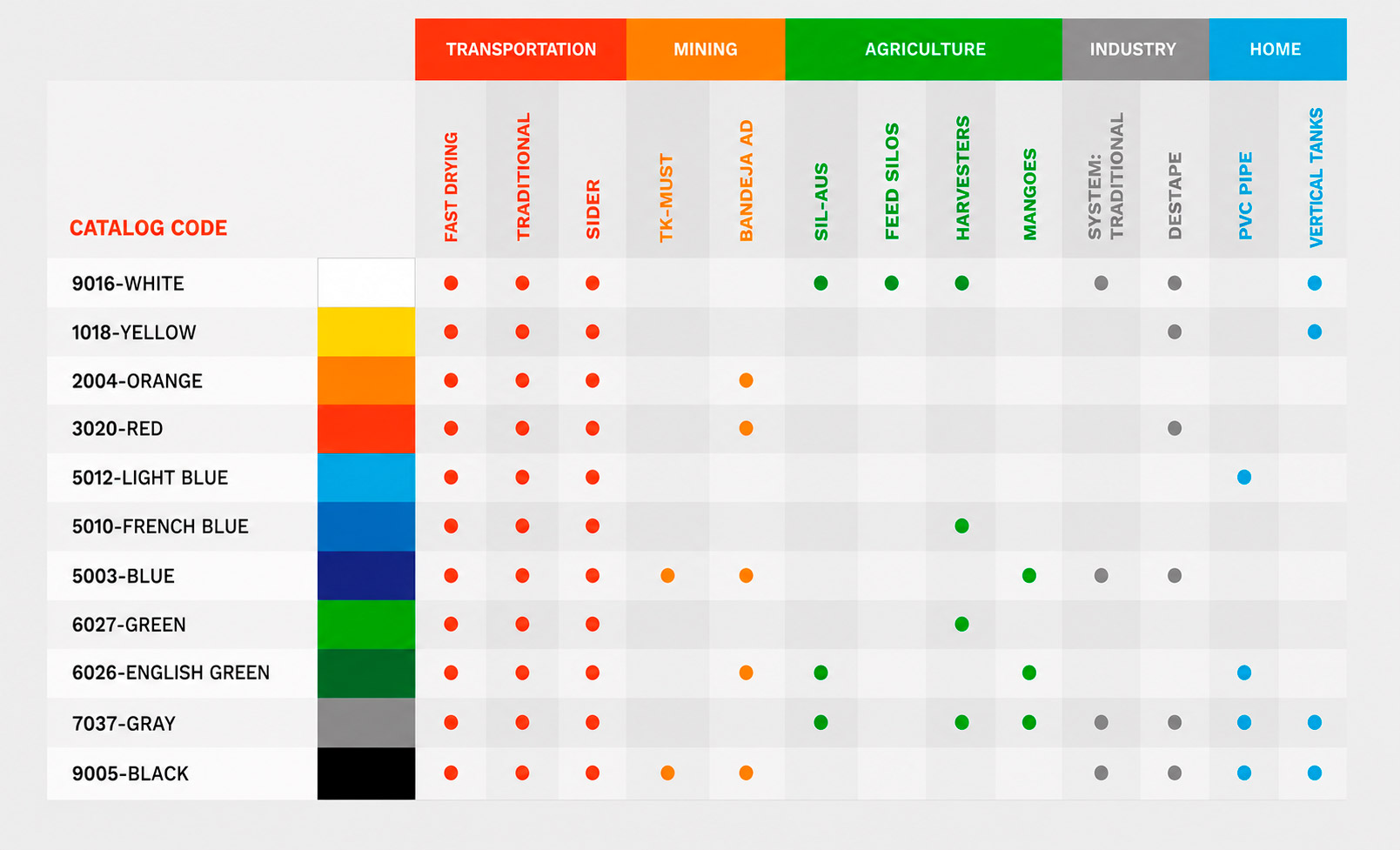

COLOR CHART
